SI Overview

Si is a core material most widely used in the semiconductor industry.
With stable electrical properties and excellent machinability,
it is used in various equipment components and wafer manufacturing.

It also provides excellent process compatibility and design flexibility in dry etching processes,
making it suitable for manufacturing complex-shaped components.

SI

Electrode

RF power is applied to gas introduced through micro-holes
in the electrode to perform dry etching on wafers.

Specification

Item

Electrode

Process

Etcher

Material

Single Crystal

Parts

Si Electrode

Size

Ø200 ~ 400 mm

Resistivity

Low: < 0.02 Ω·cm
Normal: 1~4 Ω·cm
High: 60~90 Ω·cm

Gas Hole

Diameter 0.3~1.0mm
Roundness < 0.05mm
Concentricity < 0.05mm

Surface Finish

Etching / Polishing / Lapping

Appearance

Chipping / Scratch / Crack / Stain Free


Process

  • Step 01
    제품 공정 이미지
    Rotary
  • Step 02
    제품 공정 이미지
    CNC
  • Step 03
    제품 공정 이미지
    Drill
  • Step 04
    제품 공정 이미지
    Hole Etching
  • Step 05
    제품 공정 이미지
    MCT
  • Step 06
    제품 공정 이미지
    Etching
  • Step 07
    제품 공정 이미지
    Polishing or Lapping
  • Step 08
    제품 공정 이미지
    RCA Cleaning
  • Step 09
    제품 공정 이미지
    inspection
  • Step 10
    제품 공정 이미지
    Packaging

SI

Ring

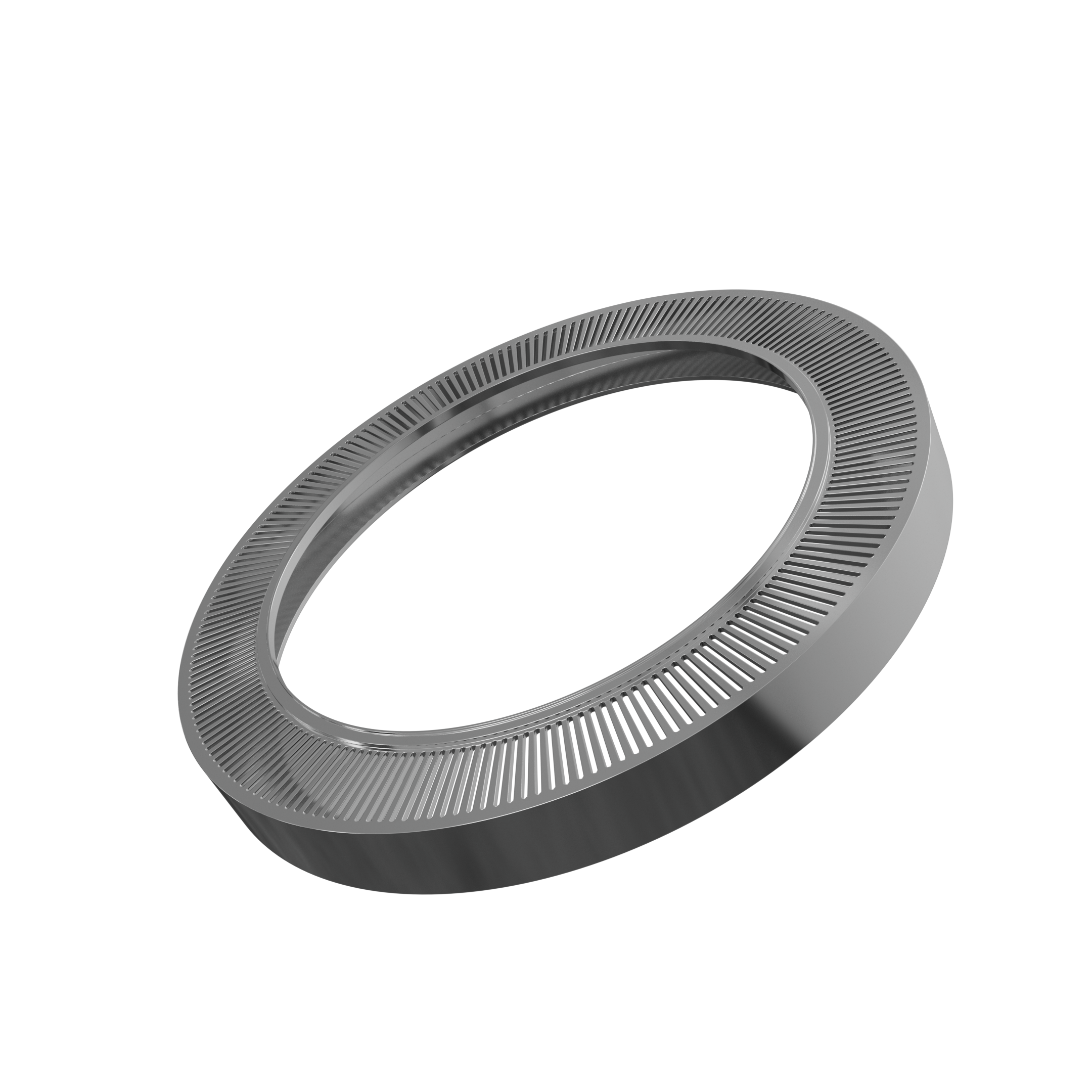

A core component that controls plasma at the
wafer edge to ensure etching uniformity.

Specification

Item

Ring

Process

Etcher

Material

Single Crystal / Poly Crystal

Parts

Focus Ring, Edge Ring, Insert Ring

Size

Ø200 ~ 600 mm

Resistivity

Low: < 0.02 Ω·cm
Normal: 1~4 Ω·cm

Gas Hole

N/A

Surface Finish

Polishing / Lapping / Grinding

Appearance

Chipping / Scratch / Crack / Stain Free


Process

  • Step 01
    제품 공정 이미지
    Rotary
  • Step 02
    제품 공정 이미지
    CNC
  • Step 03
    제품 공정 이미지
    MCT
  • Step 04
    제품 공정 이미지
    Etching
  • Step 05
    제품 공정 이미지
    Polishing or Lapping
  • Step 06
    제품 공정 이미지
    RCA Cleaning
  • Step 07
    제품 공정 이미지
    inspection
  • Step 08
    제품 공정 이미지
    Packaging
