Electrode

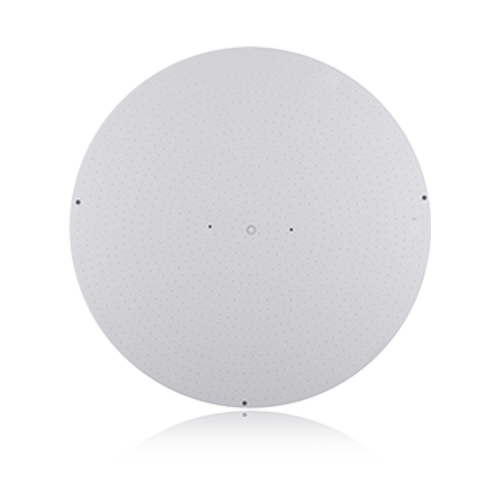

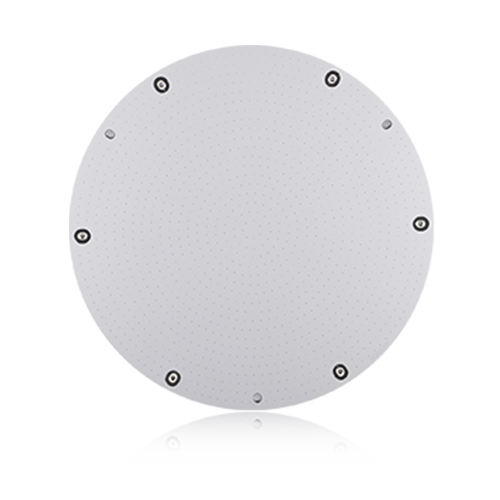

Silicon Electrode

Descriptions

The Plasma gas flowing through the micro holes of silicon plate to etch the wafer

View more information

Specifications

Properties Value
Material Single Crystal Silicon
Out diameter

500mm ~ 240mm

Resistivity(Ω.㎝) Low Res. (<0.02) / Middle Res. (1~4) / High Res. (60~90)
Gas hole Diameter 0.7~0.3mm / Roundness < 0.05mm / Concentricity < 0.05mm / Δ XY-Position < 0.05mm
Surface condition Polishing, Lapping, Grinding
Surface Flatness < 5㎛
Machining precision < 10㎛
Quality Chipping, Scratch, Crack free Contamination, Stain free
